Laboratory Heated Stage
Designers and manufacturers of the ideal heated stage conversion for all laboratory microscopes.
Bifillar wound heating elements are built into the existing microscope stage in our workshop. Sometimes, as shown in the picture, the stage has a large central insert in which case this is heated.
There are no electro magnetic emanations from the heater and no electrical switching noise from the temperature controller.
Temperature is adjustable from 25oC to 50oC and calibration definition is 0.1oC.
Temperature is displayed on a liquid crystal display on the control panel.
Wrong temperature alarm:
When the desired temperature has been selected, an alarm function is synchronised with the selection, and if the setting is inadvertently disturbed the operator is notified.Temperature drift is typically 0.3oC depending on the heating transfer properties of the individual stage itself.

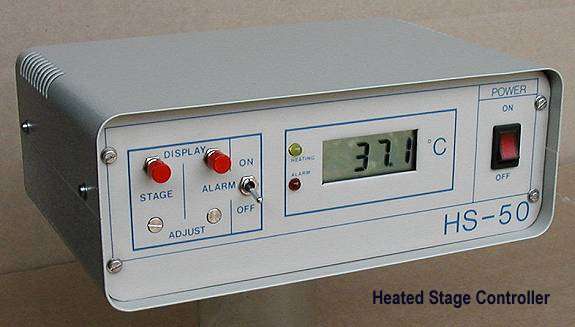

The 220 volt electronic controller unit is housed in a handsome metal enclosure connected to the stage by a cable.
Click here to view the Laboratory Heated Stage Owners Manual.
click to enlarge
Laminar Flow Heating
Based on the same controller unit used with the heated stage conversion, this unit provides all the same facilities and accuracy as for the Laboratory Heated Stage above.
